Turn on the Tags Assist option by clicking on this button in the Search conditions toolbar.

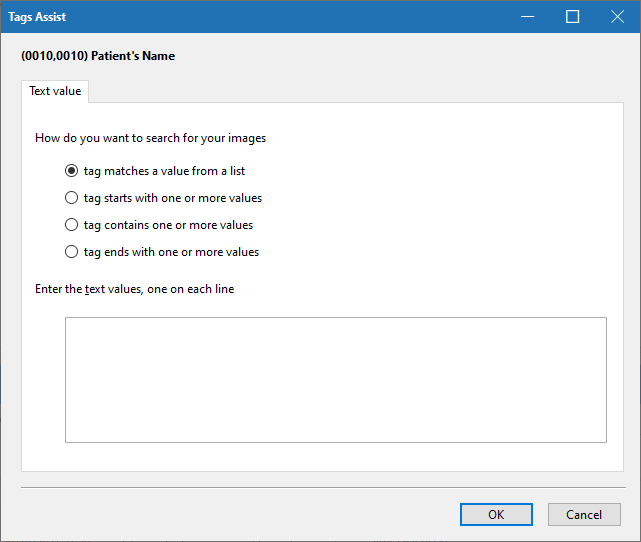

When you now double-click on a tag in the Common tags window, the Tags Assist window is displayed to help you write your search condition. For e.g. if we double-click on tag 0010,0010 (Patient's Name), the following is displayed:

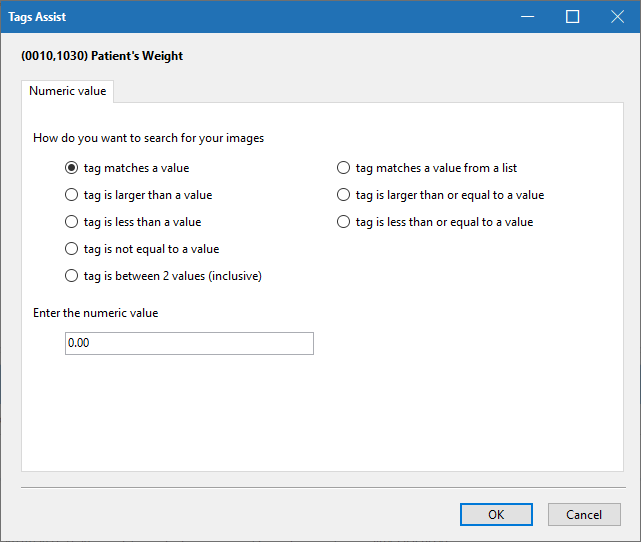

If we click on a number-type tag, for e.g. 0010,1030 (patient's weight), the following is displayed:

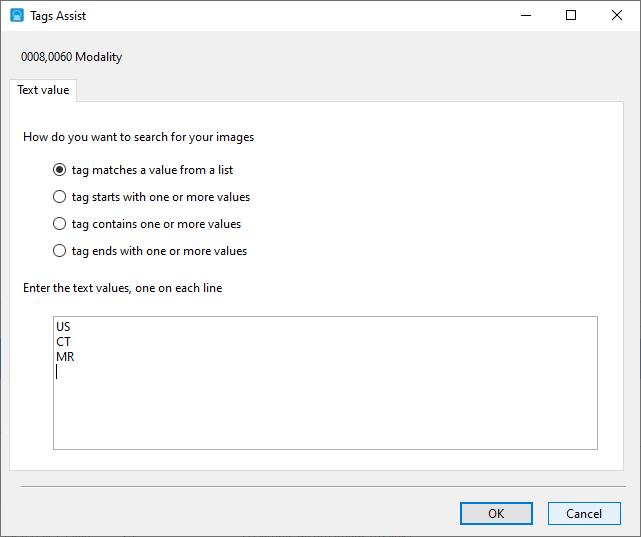

Select how you want to the tag values, and enter the value(s). Tags Assist will then generate the search condition for you. For e.g. we selected the following options for 0008,0060 (modality):

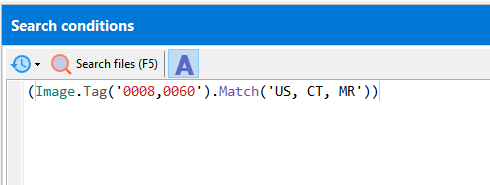

Tags Assist then generates the search condition for us:
