4.2

Creating a HTML slideshow using the

search results images

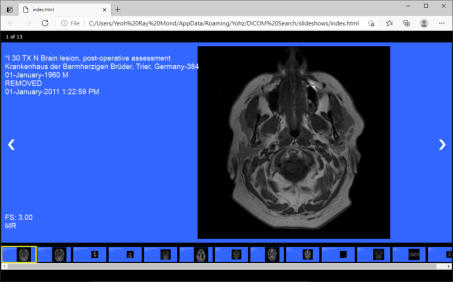

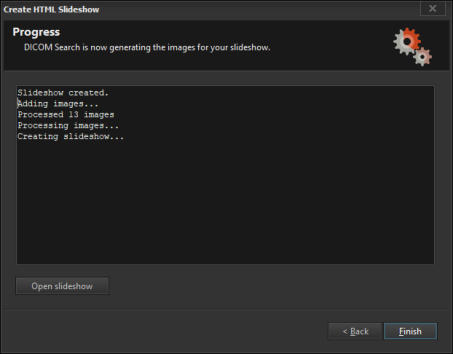

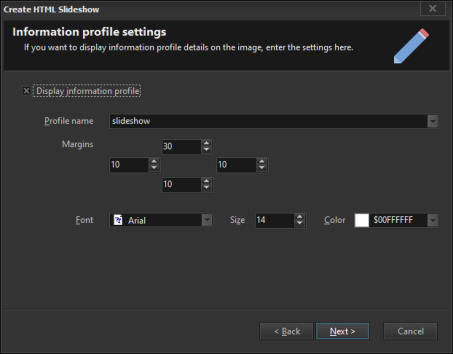

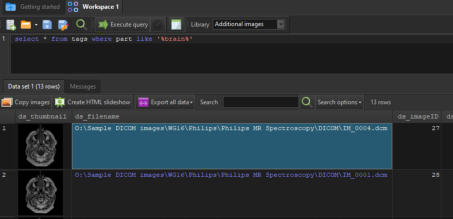

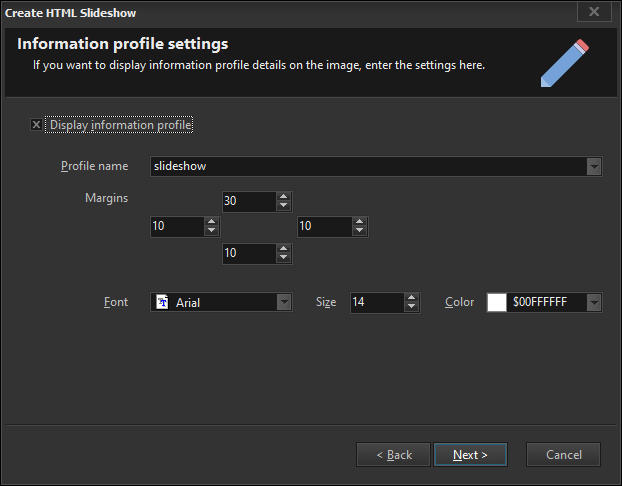

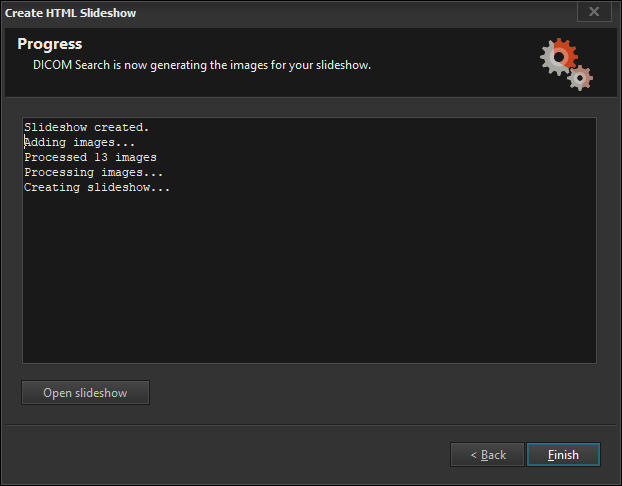

In this exercise, we will use the images from our search results to create a HTML slideshow that looks like this: To start, click on the Create HTML slideshow button. Enter the HTML file name you want to use as the slideshow’s index page. There is currently only one slideshow template provided, so that is selected by default. You can easily modify that template to change the appearance of the HTML slideshow. You can then set the resize the image using the Image width and height settings. We will add a blue border around our image, with a wider area on the left. Click Next to continue to the next page. Here, you can embed an information profile into each image in the slideshow. We will choose an information profile that only displays values on the left. The margins determine the gap between the image border and the text for the information profile. Click Next, and DICOM Search will create our slideshow. Click on the Open slideshow button to view your slideshow. Next, let’s see how to export thumbnail images and the DICOM tag values from our search results.
