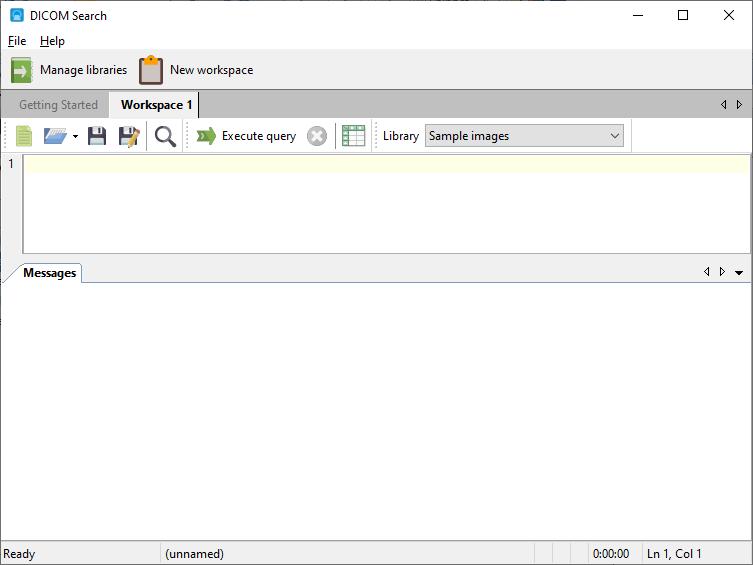

Once you have opened a new workspace, you can start searching your processed images in the tags table.



search_03





DICOM Search uses the SQLite SQL syntax, and is very easy to use.  You will only need to access the tags table to perform your search.



You write SQL commands to search for tags, as detailed below.  DICOM Search also supports a simplified manner of searching, described here.

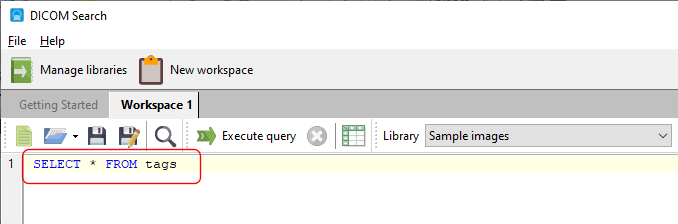

To start off with, try retrieving all the images stored in the tags database.  You do this by first entering the following SQL command in the SQL area:



SELECT * FROM tags





sql_04

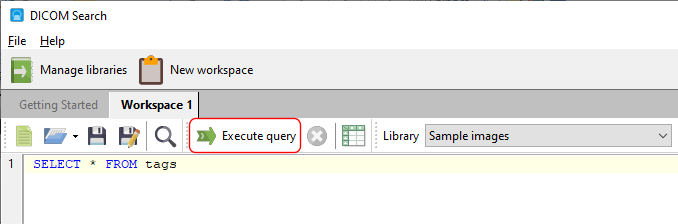

and click on the Execute query button.



sql_05

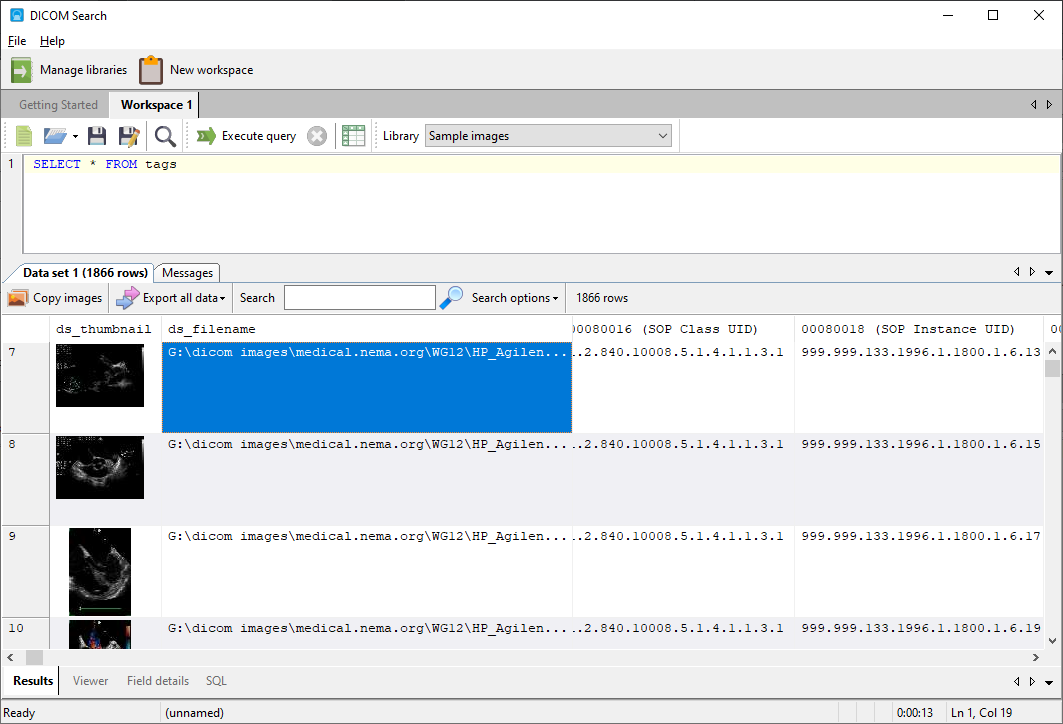

DICOM Search will run the query and return details of all the images in the tags database for the selected library,



sql_06





There will be a lot of columns returned if the images we have processed contain a lot of DICOM tags.  Thus, we usually only return the columns we are interested to view the values.  To do that, you specify the columns you want to view in the query.



In the previous example, we returned all the columns when we entered



SELECT * FROM tags



If instead of the wildcard character (*) we entered

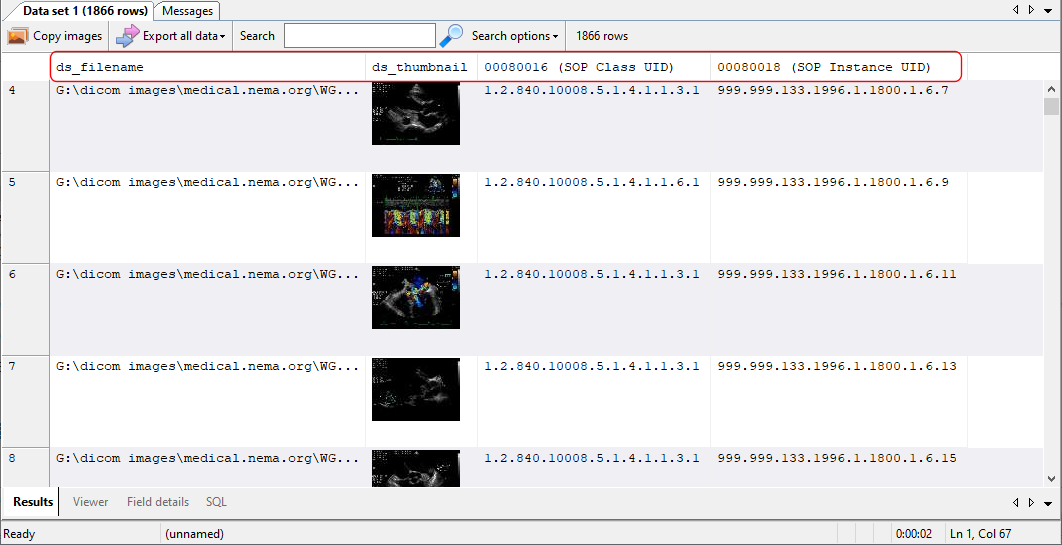

SELECT ds_filename, ds_thumbnail, [00080016], [00080018] FROM tags



DICOM Search then only returns the 4 columns we named.



sql_08





There are 3 types of columns in the tags table, one is the file metadata (file name, size, thumbnail, etc), another is the key values, and the third type is all the stored DICOM tags.  Please refer here for more details on the various columns in the tags table.

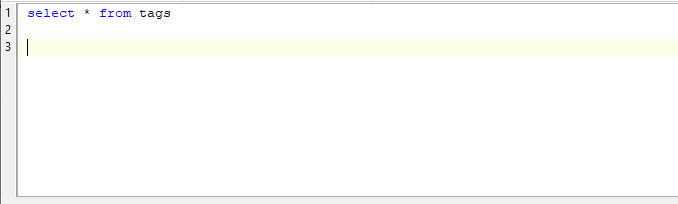

DICOM Search provides an easy way to find the tag values.  When your cursor is in the query window:



sql_09





and you press the F2 key, the Tags and Fields window is displayed.



sql_10

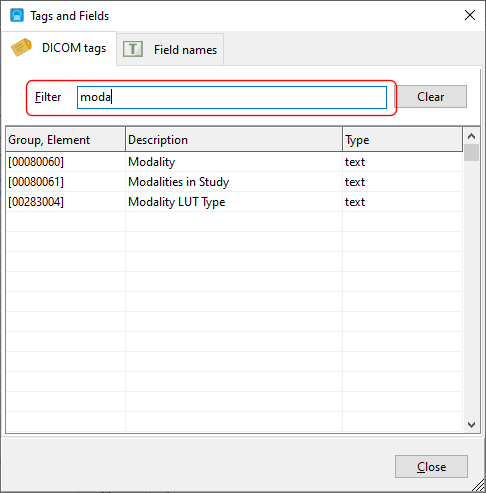

In this window, you can what each of the tag values represent.  You can filter the list by entering part of the tag description in the Filter area e.g.



sql11

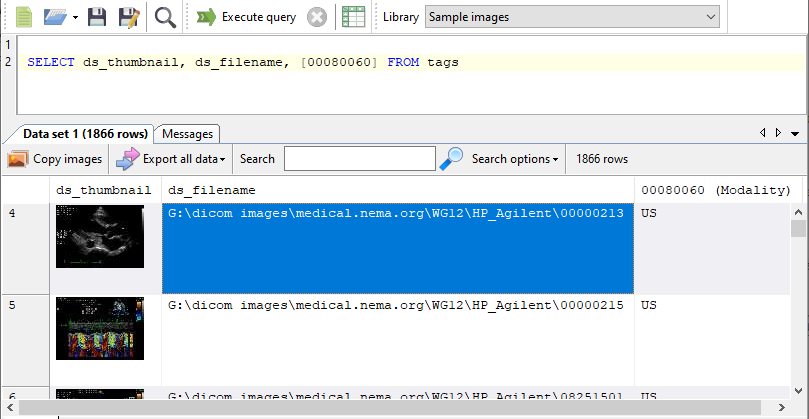

We can see that modality is represented by the value [00080060].  If we want to return this value in our search results, we add that value ([00080060]) in the SELECT list of columns e.g.



SELECT ds_thumbnail, ds_filename, [00080060] FROM tags





sql_12

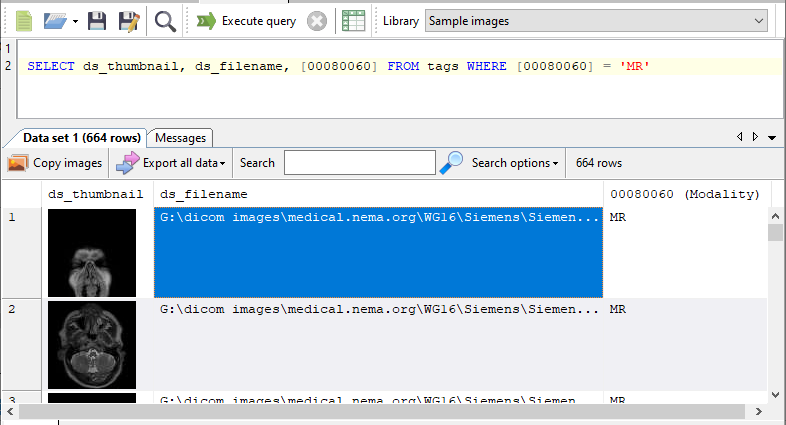

To search for images with a specific modality, we use that column in our WHERE clause e.g.



SELECT ds_thumbnail, ds_filename FROM tags WHERE [00080060] = 'MR'





sql_14
