Using the tag viewer

Top  Previous  Next

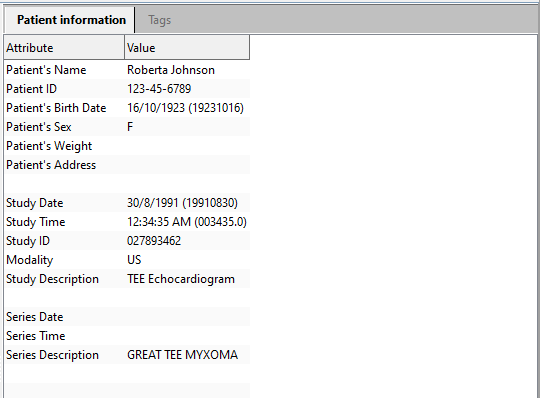

The tags viewer contains 2 pages.  The Patient information page displays the values of the patient, series, and study tags.



tags_01

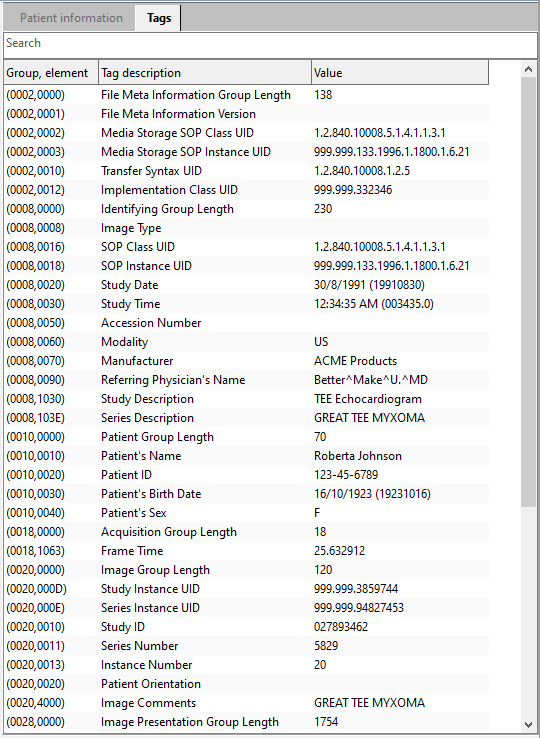

The Tags page displays the values of all the public and private DICOM tags found in the image.  Note that the description of the private tags will not be displayed.



tags_02

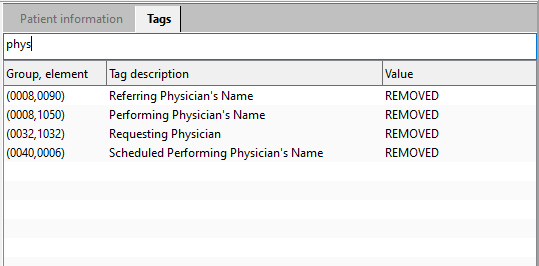

You can filter the list of tags by entering a value in the Search area e.g. if we enter phys in the search area, DICOM Search will then display only items containing the word phys.



tags_03

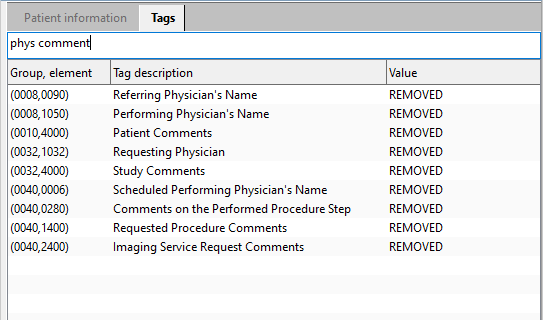

You can also filter using multiple values by separating each value with a space e.g.



tags_04



If you need to enter a value containing a space, enclose it in double quotes e.g.



tags_05
