Hidden Excel worksheets

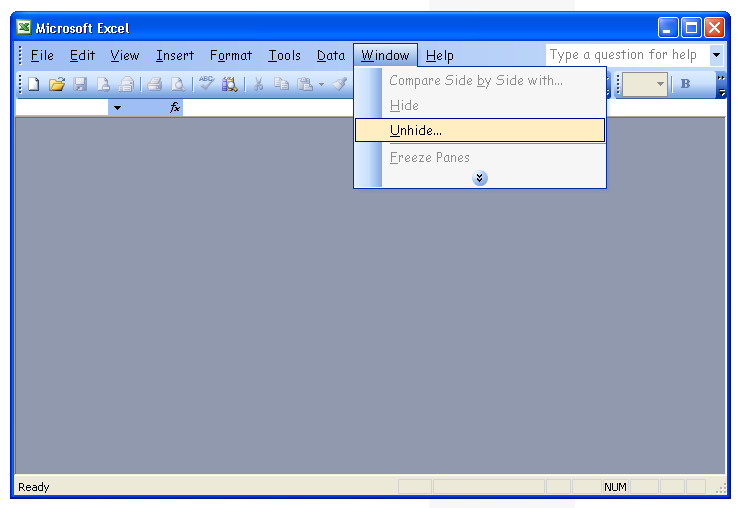

When you export embedded Excel worksheets from OLE Object columns, the worksheets may be hidden by default. To view the worksheets, you would need to unhide them.

xls_unhide

SQL Image Viewer can automatically unhide the worksheets for you if the following 2 conditions are met:

· you have Excel installed on the machine that you are exporting the files from
· the version of Excel you have is able to open all the exportedworksheets

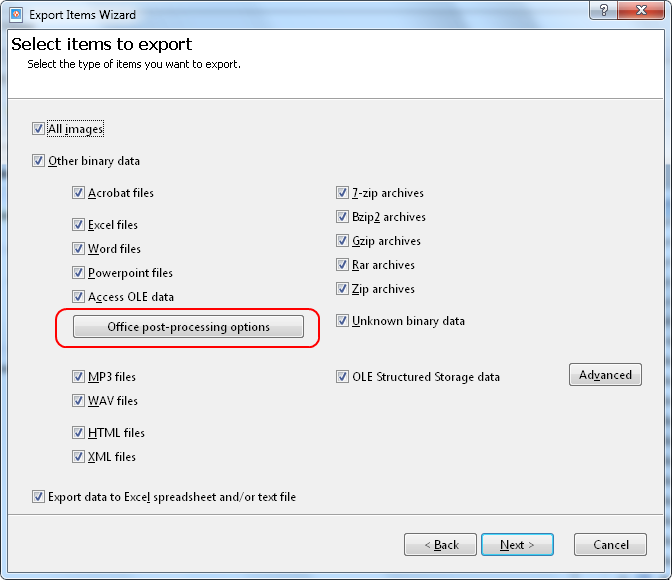

To unhide the worksheets using SQL Image Viewer, in the Export Items Wizard, click on the Office post-processing options button.

export-step1e

On the next screen. select the Unhide workbook option.

export-step1d_unhide
